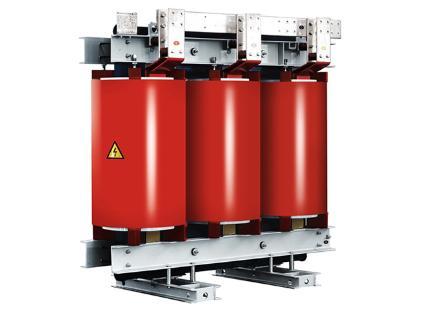

Cast resin dry type transformer
We will send the quotation to you within 24 hours.
Cast resin dry type transformer
Voltage: 10kV, 20kV, 35kV
Voltage regulation: off circuit tapping or on load tapping
Tapping range: ±5%, ±2X2.5% or ±3X2.5%
Capacity: 30-25000kVA
Frequency: 50Hz and 60Hz; Single-phase and 3-phase
Operating environment: RH: 100%
ambient temperature: ≤ 40℃ (or according to customer requirements)
Protection grade: IP00, IP20 and IP23;
Insulation and thermal resistance: F grade
Insulation:10kV class
power frequency withstand voltage: 35kV
impulse withstand voltage: 75kV, 35kV
class power frequency withstand voltage: 70kV
impulse withstand voltage: 170kV
-
Cast resin dry type transformer
Dry-type transformer
