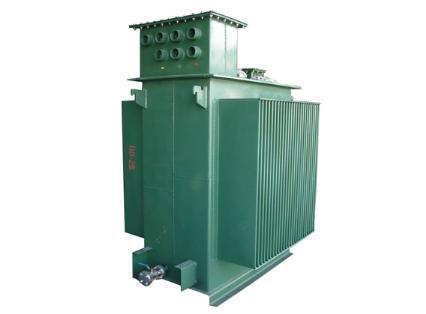

Buried type transformer

Buried type transformer
payment

We will send the quotation to you within 24 hours.

  • Rated voltage: HV: 6/10kV, LV: 0.4kV   Capacity: 30, 50, 63, 80, 100, 125, 160, 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000kVA   Frequency: 50Hz  Phase: single phase and 3-phase   Vector group: Dyn11, Yyn0  Impedance voltage: according to national standards  Operation environment: in the basement or cellar   Loss: reaching national standard S11 series parameters Enclosure protection leve: IP68  Noise level≤ 55dB

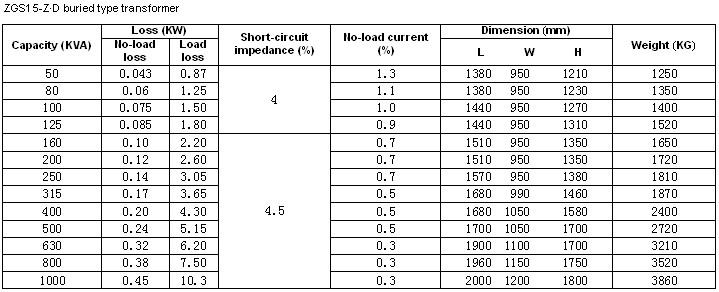

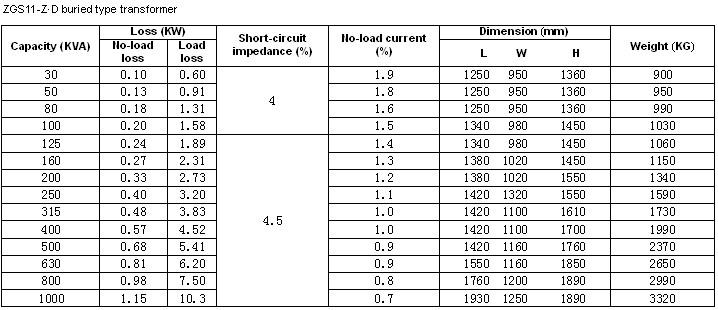

    Transformer body - technical parameters and dimension

  • Buried type transformer Pre-fabricated substation Landscape buried type transformer Pad mounted transformer
